monero_c_rpc_connection.h File Reference

#include "utils/monero_c_utils.h"
#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>

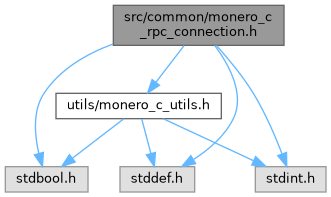

Include dependency graph for monero_c_rpc_connection.h:

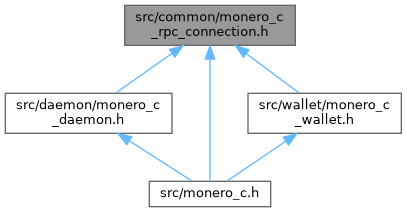

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Typedefs
typedef struct monero_rpc_connection	monero_rpc_connection
	Copyright (c) Libmonero.
typedef enum monero_optional_bool	monero_optional_bool
	Bool that is unset until monero-cpp knows it, e.g.

Enumerations
enum	monero_optional_bool { MONERO_OPTIONAL_BOOL_UNSET = -1 , MONERO_OPTIONAL_BOOL_FALSE = 0 , MONERO_OPTIONAL_BOOL_TRUE = 1 }
	Bool that is unset until monero-cpp knows it, e.g. More...

Functions
MONERO_EXPORT monero_result	monero_rpc_connection_create (const char *connection_json, monero_rpc_connection **out_connection)
	Create a connection.
MONERO_EXPORT void	monero_rpc_connection_free (monero_rpc_connection *connection)
	Release a connection handle.
MONERO_EXPORT monero_result	monero_rpc_connection_serialize (monero_rpc_connection *connection, char **out_json)
	Serialize the connection, with the status that check_connection() sets.
MONERO_EXPORT monero_result	monero_rpc_connection_set_credentials (monero_rpc_connection *connection, const char *username, const char *password)
	Set the credentials of the connection.
MONERO_EXPORT monero_result	monero_rpc_connection_set_attribute (monero_rpc_connection *connection, const char *key, const char *value)
	Set an attribute of the connection.
MONERO_EXPORT monero_result	monero_rpc_connection_get_attribute (monero_rpc_connection *connection, const char *key, char **out_value)
	Get an attribute of the connection.
MONERO_EXPORT monero_result	monero_rpc_connection_is_onion (monero_rpc_connection *connection, bool *out_is_onion)
	Check if the URI is a Tor onion address.
MONERO_EXPORT monero_result	monero_rpc_connection_is_i2p (monero_rpc_connection *connection, bool *out_is_i2p)
	Check if the URI is an I2P address.
MONERO_EXPORT monero_result	monero_rpc_connection_is_online (monero_rpc_connection *connection, monero_optional_bool *out_is_online)
	Check if the server was online at the last check_connection().
MONERO_EXPORT monero_result	monero_rpc_connection_is_authenticated (monero_rpc_connection *connection, monero_optional_bool *out_is_authenticated)
	Check if the server accepted the credentials at the last check_connection().
MONERO_EXPORT monero_result	monero_rpc_connection_is_connected (monero_rpc_connection *connection, monero_optional_bool *out_is_connected)
	Check if the server was online and authenticated at the last check_connection().
MONERO_EXPORT monero_result	monero_rpc_connection_check_connection (monero_rpc_connection *connection, const uint32_t *timeout_ms, bool *out_changed)
	Check the connection and update its online, authentication and response time status.
MONERO_EXPORT monero_result	monero_rpc_connection_send_json_request (monero_rpc_connection *connection, const char *method, const char *params_json, const uint32_t *timeout_ms, char **out_json)
	Send a JSON-RPC request to /json_rpc.
MONERO_EXPORT monero_result	monero_rpc_connection_send_path_request (monero_rpc_connection *connection, const char *path, const char *params_json, const uint32_t *timeout_ms, char **out_json)
	Send a JSON request to a path of the server, e.g.
MONERO_EXPORT monero_result	monero_rpc_connection_send_binary_request (monero_rpc_connection *connection, const char *path, const char *params_json, const uint32_t *timeout_ms, uint8_t **out_data, size_t *out_len)
	Send a binary request to a path of the server, e.g.

Typedef Documentation

monero_optional_bool

typedef enum monero_optional_bool monero_optional_bool

Bool that is unset until monero-cpp knows it, e.g.

before the first check_connection().

monero_rpc_connection

typedef struct monero_rpc_connection monero_rpc_connection

Copyright (c) Libmonero.

Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Software, and to permit persons to whom the Software is furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE. Opaque handle to a connection to a monerod or monero-wallet-rpc server. Create it with monero_rpc_connection_create() and release it with monero_rpc_connection_free(). Daemons and RPC wallets created from the handle share the connection and its status.

Thread safety

monero-cpp locks the connection, so one handle can be used from several threads. Don't call monero_rpc_connection_free() while another thread uses the handle.

Enumeration Type Documentation

monero_optional_bool

enum monero_optional_bool

Bool that is unset until monero-cpp knows it, e.g.

before the first check_connection().

Enumerator
MONERO_OPTIONAL_BOOL_UNSET
MONERO_OPTIONAL_BOOL_FALSE
MONERO_OPTIONAL_BOOL_TRUE

Function Documentation

monero_rpc_connection_check_connection()

MONERO_EXPORT monero_result monero_rpc_connection_check_connection	(	monero_rpc_connection *	connection,
		const uint32_t *	timeout_ms,
		bool *	out_changed
	)

Check the connection and update its online, authentication and response time status.

An unreachable server is not an error. The status becomes offline.

Parameters

connection	is the connection handle
timeout_ms	is the time to wait for the server in milliseconds, or NULL for the connection's timeout
out_changed	receives true if the online or authentication status changed

Returns

MONERO_OK or MONERO_ERROR

monero_rpc_connection_create()

MONERO_EXPORT monero_result monero_rpc_connection_create	(	const char *	connection_json,
		monero_rpc_connection **	out_connection
	)

Create a connection.

It doesn't contact the server.

Parameters

connection_json	is the JSON-serialized monero_rpc_connection, e.g. {"uri":"http://127.0.0.1:18081","sslVerify":false}
out_connection	receives the new handle, released with monero_rpc_connection_free()

Returns

MONERO_OK or MONERO_ERROR

monero_rpc_connection_free()

MONERO_EXPORT void monero_rpc_connection_free

(

monero_rpc_connection *

connection

)

Release a connection handle.

The daemons and RPC wallets that share the connection keep it. Passing NULL does nothing.

Parameters

connection

is the handle to release

monero_rpc_connection_get_attribute()

MONERO_EXPORT monero_result monero_rpc_connection_get_attribute	(	monero_rpc_connection *	connection,
		const char *	key,
		char **	out_value
	)

Get an attribute of the connection.

Parameters

connection	is the connection handle
key	is the attribute key
out_value	receives the value, "" if the attribute is not set. Free with monero_utils_free()

Returns

MONERO_OK or MONERO_ERROR

monero_rpc_connection_is_authenticated()

MONERO_EXPORT monero_result monero_rpc_connection_is_authenticated	(	monero_rpc_connection *	connection,
		monero_optional_bool *	out_is_authenticated
	)

Check if the server accepted the credentials at the last check_connection().

Parameters

connection	is the connection handle
out_is_authenticated	receives the status, also true if the server needs no credentials

Returns

MONERO_OK or MONERO_ERROR

monero_rpc_connection_is_connected()

MONERO_EXPORT monero_result monero_rpc_connection_is_connected	(	monero_rpc_connection *	connection,
		monero_optional_bool *	out_is_connected
	)

Check if the server was online and authenticated at the last check_connection().

Parameters

connection	is the connection handle
out_is_connected	receives the status, MONERO_OPTIONAL_BOOL_UNSET before the first check

Returns

MONERO_OK or MONERO_ERROR

monero_rpc_connection_is_i2p()

MONERO_EXPORT monero_result monero_rpc_connection_is_i2p	(	monero_rpc_connection *	connection,
		bool *	out_is_i2p
	)

Check if the URI is an I2P address.

Parameters

connection	is the connection handle
out_is_i2p	receives true if the URI is a .b32.i2p address

Returns

MONERO_OK or MONERO_ERROR

monero_rpc_connection_is_onion()

MONERO_EXPORT monero_result monero_rpc_connection_is_onion	(	monero_rpc_connection *	connection,
		bool *	out_is_onion
	)

Check if the URI is a Tor onion address.

Parameters

connection	is the connection handle
out_is_onion	receives true if the URI is a .onion address

Returns

MONERO_OK or MONERO_ERROR

monero_rpc_connection_is_online()

MONERO_EXPORT monero_result monero_rpc_connection_is_online	(	monero_rpc_connection *	connection,
		monero_optional_bool *	out_is_online
	)

Check if the server was online at the last check_connection().

Parameters

connection	is the connection handle
out_is_online	receives the status, MONERO_OPTIONAL_BOOL_UNSET before the first check

Returns

MONERO_OK or MONERO_ERROR

monero_rpc_connection_send_binary_request()

MONERO_EXPORT monero_result monero_rpc_connection_send_binary_request	(	monero_rpc_connection *	connection,
		const char *	path,
		const char *	params_json,
		const uint32_t *	timeout_ms,
		uint8_t **	out_data,
		size_t *	out_len
	)

Send a binary request to a path of the server, e.g.

"get_blocks_by_height.bin". The parameters are sent in the portable storage format, and monero_utils_binary_to_json() converts the response.

Parameters

connection	is the connection handle
path	is the path without the leading slash
params_json	is a JSON object with the parameters, or NULL for none
timeout_ms	is the request timeout in milliseconds, or NULL for the connection's timeout
out_data	receives the binary response. Free with monero_utils_free()
out_len	receives the length of out_data

Returns

MONERO_OK or MONERO_ERROR

monero_rpc_connection_send_json_request()

MONERO_EXPORT monero_result monero_rpc_connection_send_json_request	(	monero_rpc_connection *	connection,
		const char *	method,
		const char *	params_json,
		const uint32_t *	timeout_ms,
		char **	out_json
	)

Send a JSON-RPC request to /json_rpc.

monero-cpp parses the response into a property tree, which has no types, so "true" and "false" become bools and numbers become numbers. Empty arrays and objects become "".

Parameters

connection	is the connection handle
method	is the JSON-RPC method, e.g. "get_block_count"
params_json	is a JSON object with the parameters, or NULL for none
timeout_ms	is the request timeout in milliseconds, or NULL for the connection's timeout
out_json	receives the "result" of the response. Free with monero_utils_free()

Returns

MONERO_OK or MONERO_ERROR

monero_rpc_connection_send_path_request()

MONERO_EXPORT monero_result monero_rpc_connection_send_path_request	(	monero_rpc_connection *	connection,
		const char *	path,
		const char *	params_json,
		const uint32_t *	timeout_ms,
		char **	out_json
	)

Send a JSON request to a path of the server, e.g.

"get_height" for /get_height. The response has the same types as in monero_rpc_connection_send_json_request().

Parameters

connection	is the connection handle
path	is the path without the leading slash
params_json	is a JSON object with the parameters, or NULL for none
timeout_ms	is the request timeout in milliseconds, or NULL for the connection's timeout
out_json	receives the response. Free with monero_utils_free()

Returns

MONERO_OK or MONERO_ERROR

monero_rpc_connection_serialize()

MONERO_EXPORT monero_result monero_rpc_connection_serialize	(	monero_rpc_connection *	connection,
		char **	out_json
	)

Serialize the connection, with the status that check_connection() sets.

Parameters

connection	is the connection handle
out_json	receives the JSON-serialized monero_rpc_connection, with the password. Free with monero_utils_free()

Returns

MONERO_OK or MONERO_ERROR

monero_rpc_connection_set_attribute()

MONERO_EXPORT monero_result monero_rpc_connection_set_attribute	(	monero_rpc_connection *	connection,
		const char *	key,
		const char *	value
	)

Set an attribute of the connection.

Attributes are kept in memory only.

Parameters

connection	is the connection handle
key	is the attribute key
value	is the attribute value

Returns

MONERO_OK or MONERO_ERROR

monero_rpc_connection_set_credentials()

MONERO_EXPORT monero_result monero_rpc_connection_set_credentials	(	monero_rpc_connection *	connection,
		const char *	username,
		const char *	password
	)

Set the credentials of the connection.

Parameters

connection	is the connection handle
username	is the username, or "" for none
password	is the password, or "" for none

Returns

MONERO_OK or MONERO_ERROR
